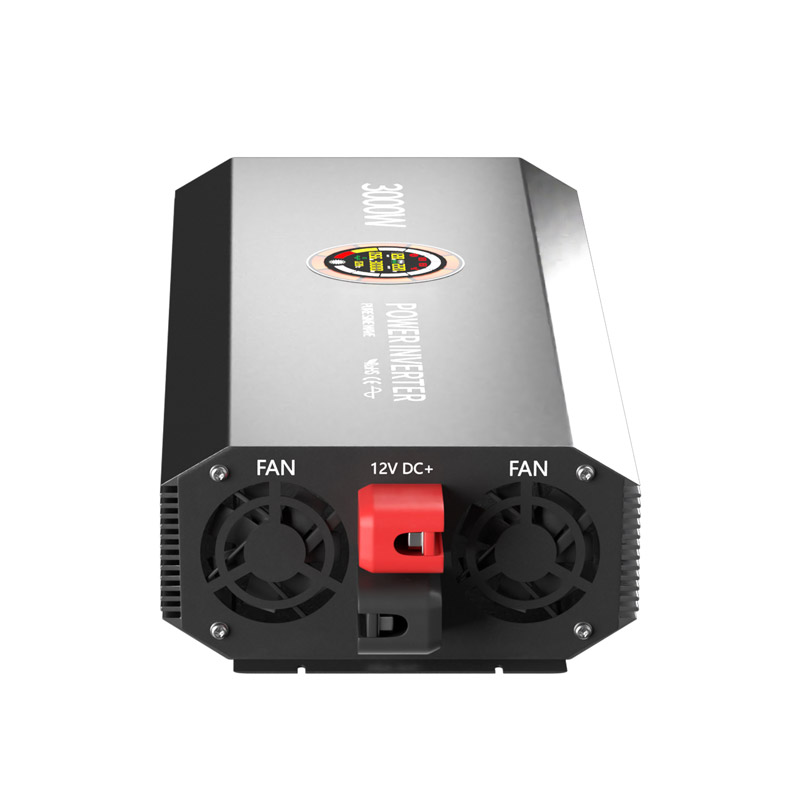

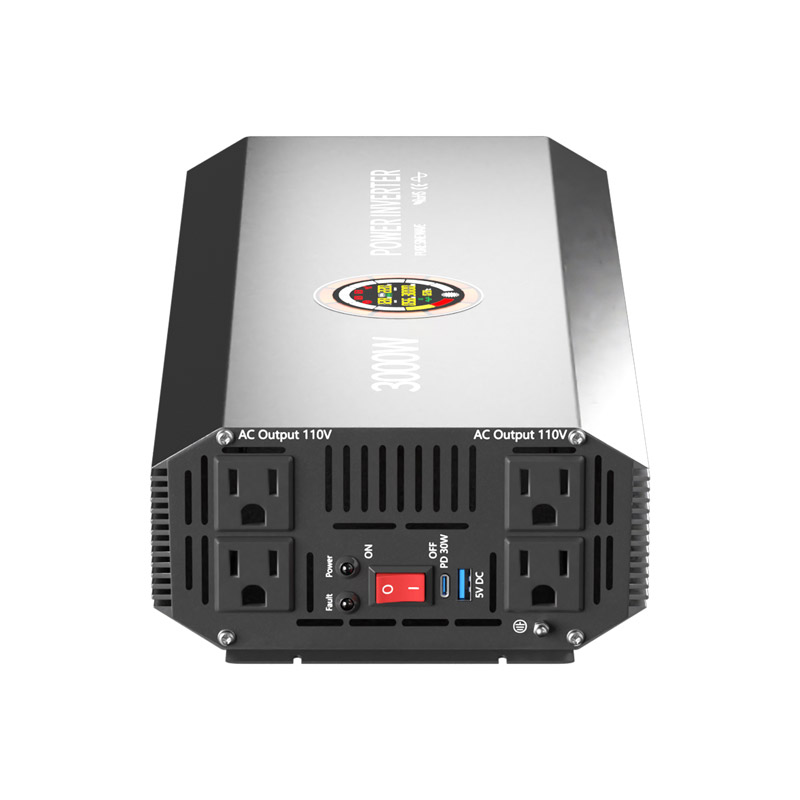

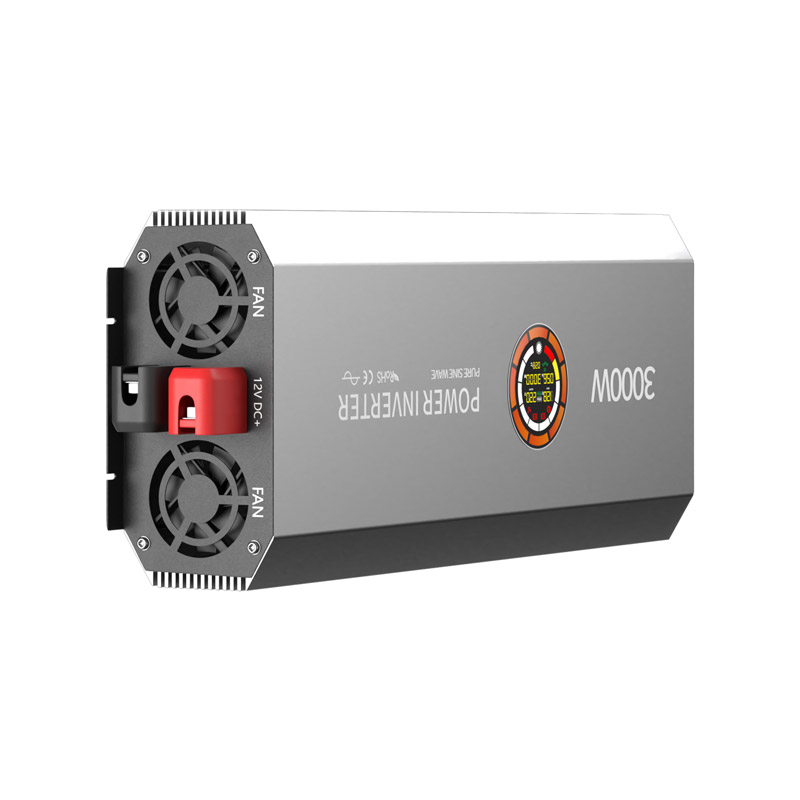

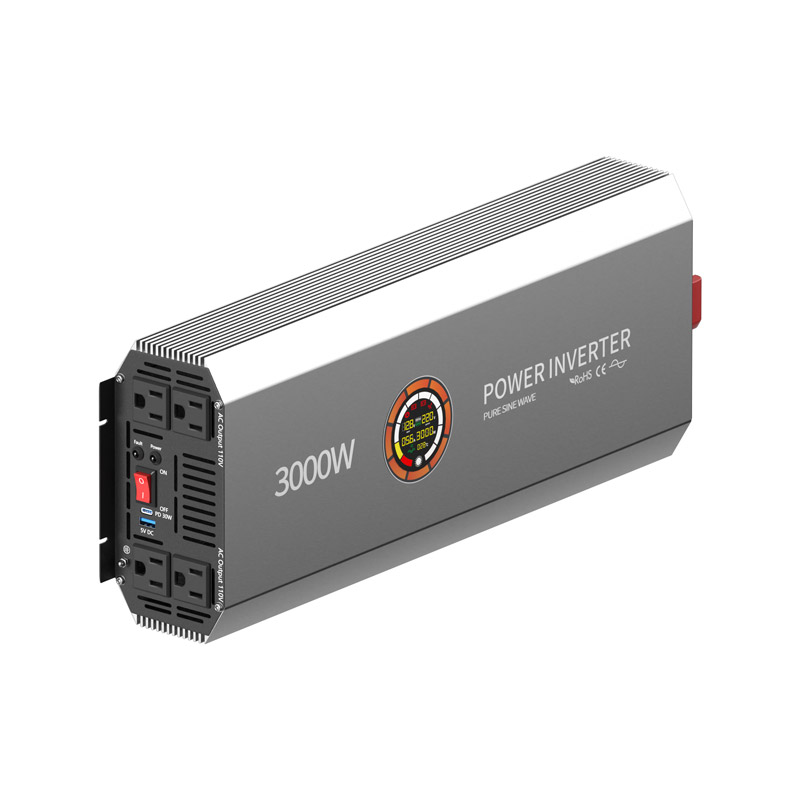

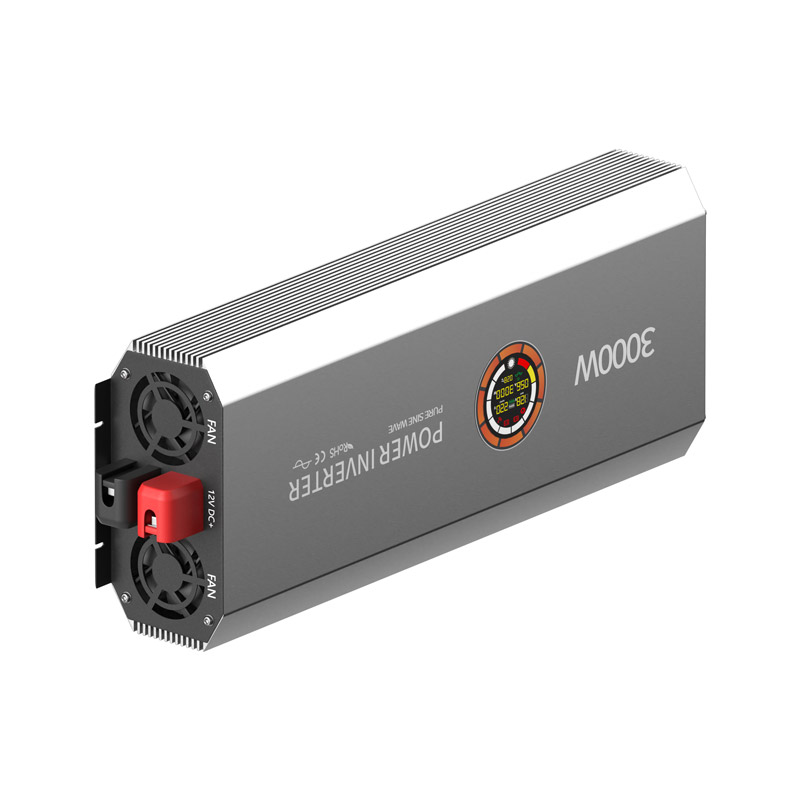

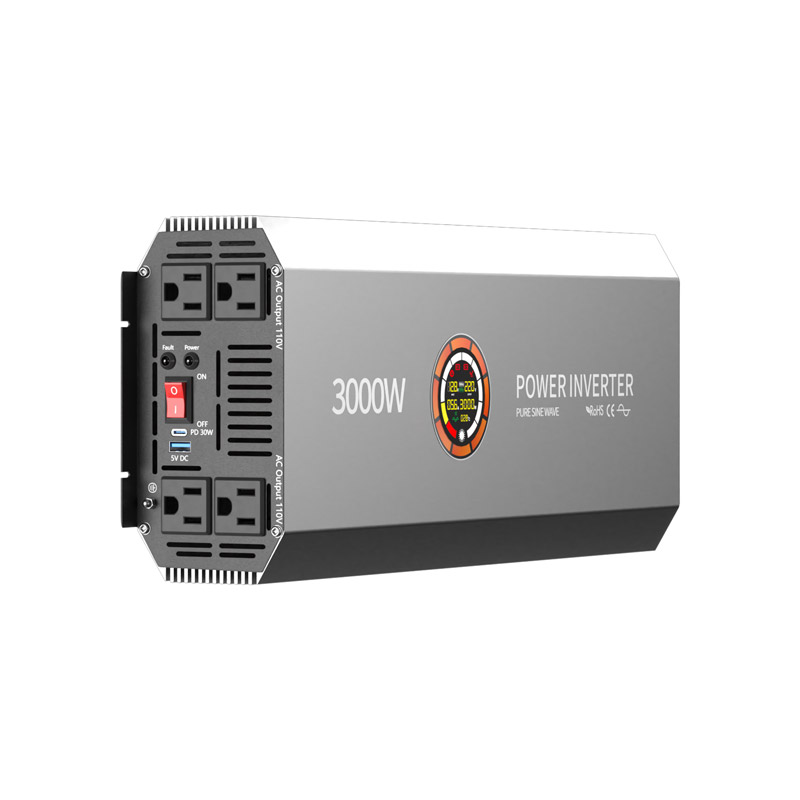

SGPF-3000W Pure Sine Wave Inverter
SGPF-3000W Pure Sine Wave Inverter
SGPF-3000W Pure Sine Wave Inverter
SGPF-3000W Pure Sine Wave Inverter
SGPF-3000W Pure Sine Wave Inverter

SGPF-3000W Pure Sine Wave Inverter



• Compact in size

• Eight major protection functions

• Pure sine wave output

SGPF-3000W Pure Sine Wave Inverter
SGPF-3000W Pure Sine Wave Inverter
SGPF-3000W Pure Sine Wave Inverter
SGPF-3000W Pure Sine Wave Inverter
SGPF-3000W Pure Sine Wave Inverter
Send a Quote
Product Specifications
Product Introduction



The SGPF series high-frequency pure sine wave inverter adopts independently developed software, which outputs pure sine waveform with better quality than mains power and can be used to operate most electric tools and inductive loads; At the same time, the design of input and output circuits is completely isolated, ensuring the safety of system operation.





Product Features



1. Input and output are completely isolated

2. Stable operation at full power load

3. Soft start function

4. Pure sine wave inverter

5. Small size, easy to carry and install

6. Eight major protection functions





Application Area



※ Energy storage system, control system, alarm system, power system, database

※ Emergency lighting system, emergency power supply, UPS

※ Telecommunications, communication, and fire protection





Product Parameters



Model SGPF-3000
Rated power 3000W
Peak power 6000W
Input voltage 12/24/48VDC
Output voltage 110/220VAC±5%
USB port 5V2A
Frequency 50Hz ± 3 or 60Hz ± 3
Output waveform Pure sine wave
Soft start yes
Efficiency Maximum 94%
DC input range 12V(10V-15.5V);24V(20V-31V);48V(40V-61V)
Input undervoltage alarm 12V(10.5V±0.5V);24V(21V±0.5V);48V(42V±1V)
Input undervoltage protection 12V(10V±0.5V);24V(20V±0.5V);48V(40V±1V)
Input undervoltage recovery 12V(13V±0.5V);24V(24V±0.5V);48V(48V±1V)
Input Overvoltage Protection 12V(16V±0.5V);24V(31V±0.5V);48V(61V±1V)
Input overvoltage recovery 12V(14.8V±0.5V);24V(29V±0.5V);48V(59V±1V)
Refrigeration method Intelligent fan
Protection function Undervoltage protection, overvoltage protection, overload protection,
over temperature protection, short circuit protection, reverse connection protection (fuse)
Working temperature -10°C-+50°C
Product size (cm) 37.7*16.3*8.1
Package size (cm) 50*44.5*23/3PCS
NW./PCS (kg) 4.25
GW./Ctn (kg) 15.91
Packaging method Carton
Warranty 1Year
