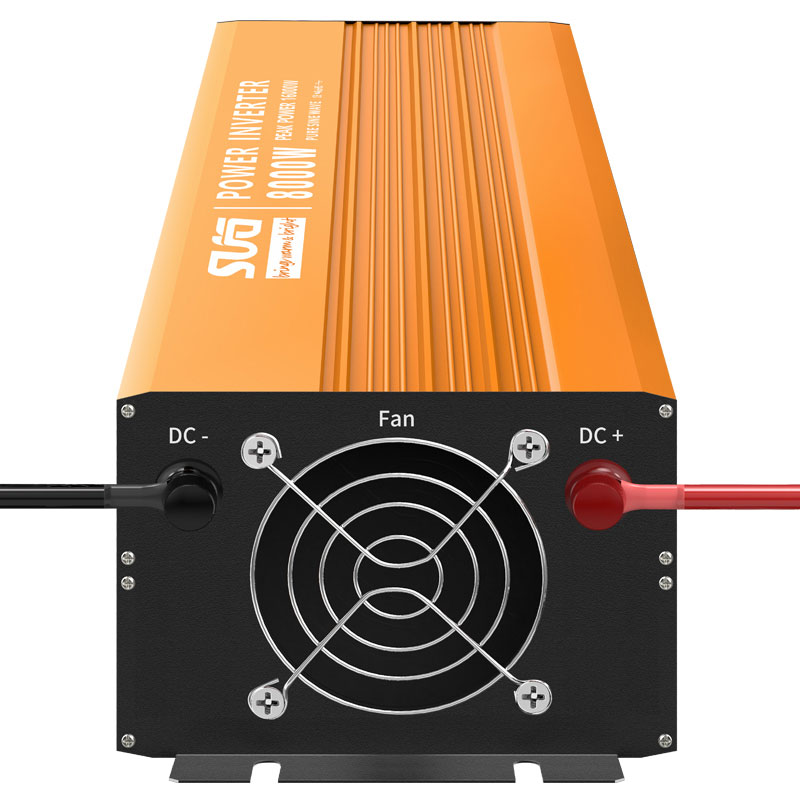

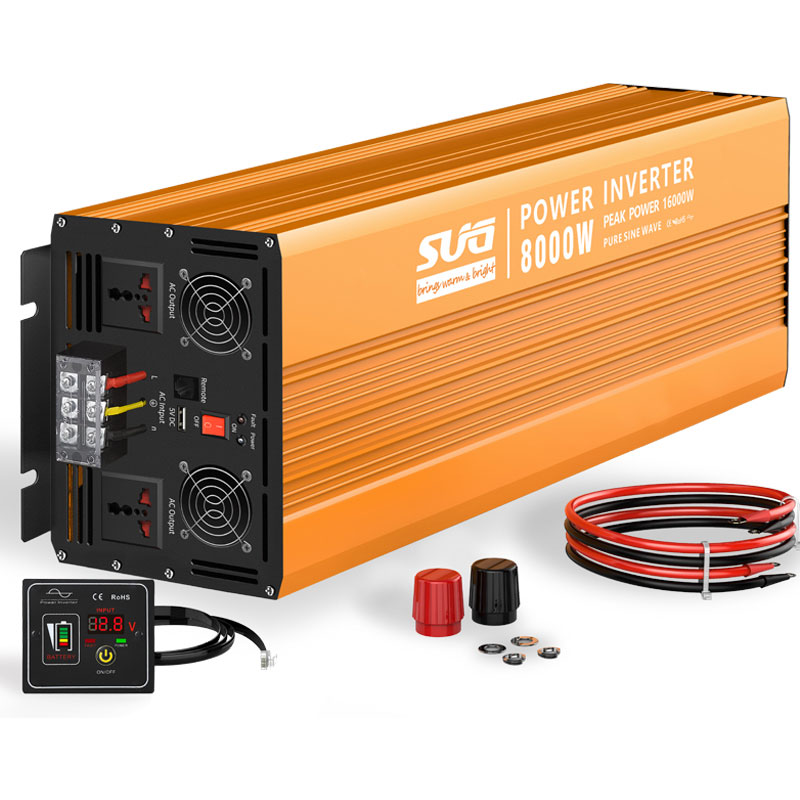

Name: SGPE 8000W Pure Sine Wave Inverter
Brand: 默认品牌
SKU: 00253
Rating: 4.1 (177 reviews)

Product Specifications

1.it is 300w-8000w

2.pure sine wave output with DC-AC

3.2 years warranty

4.12/24/48vdc optional and 36/60/72/84/96/110/120vac customization

5.100/110/115/120/220/230vac optional

6.EU/USA/Japan/UK/Australia/Universal socket optional

7.CE/FCC/ROHS/PSE/ETL

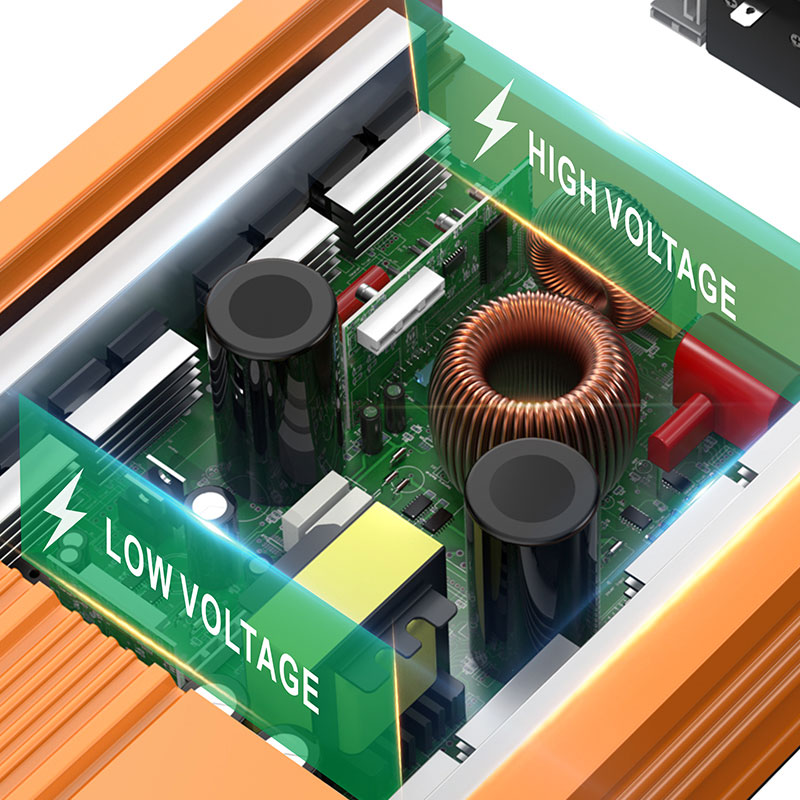

8.sufficient power watt with original imported chip,IGBT,MOSFET

9.accept OEM/ODM

Specification:

Model	SGPE8000W-121	SGPE8000W-122	SGPE8000W-241	SGPE8000W-242	SGPE8000W-481	SGPE8000W-482
Rated Power	8000W
Surge Power	16000W(few seconds)
Input Voltage	12VDC		24VDC		48VDC
Output Voltage	110VAC±5%	220VAC±5%	110VAC±5%	220VAC±5%	110VAC±5%	220VAC±5%
USB Port	5V2A
Frequency	50Hz±3 or 60Hz±3
Output Waveform	Pure Sine Wave
Soft Start	YES
AC Regulation	THD<3%(Linear Load)
Output Efficiency	94% MAX
No Load Current	0.6A		0.3A		0.1A
DC Voltage Range	10-15.5V		20-31V		40-62V
Low Voltage Alarm	10.5±0.5V		21±0.5V		42±0.5V
Low Voltage Shut Down	10±0.5V		20±0.5V		40±0.5V
Low Voltage Recovery	13±0.5V		26±0.5V		52±0.5V
Over Voltage Shut Down	15.5±0.5V		31±0.5V		62±0.5V
Over Voltage Recovery	14.8±0.5V		29.6±0.5V		59.2±0.5V

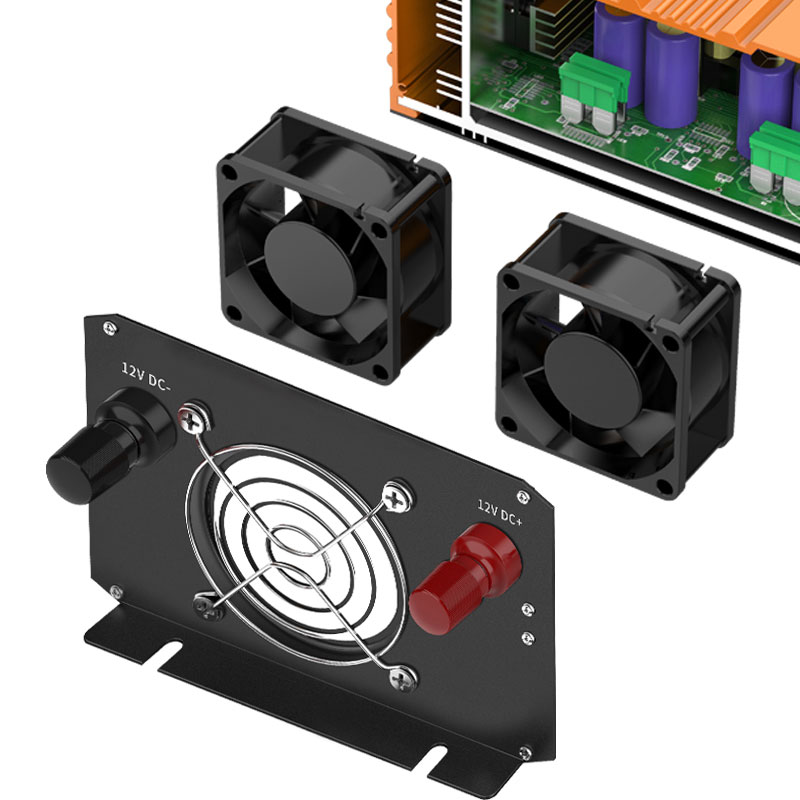

Cooling Way	Intelligent Cooling Fan
Protection	Battery Low Voltage & Over Voltage, Over Load, Over Temperature, Short Circuit, Reverse Polarity
Working Temperature	-10ºC - +50ºC
Net Dimension	610200150mm
Meas./Ctn	735308240mm/1pcs
N.W./Unit	13kg
G.W./Ctn	15kgs

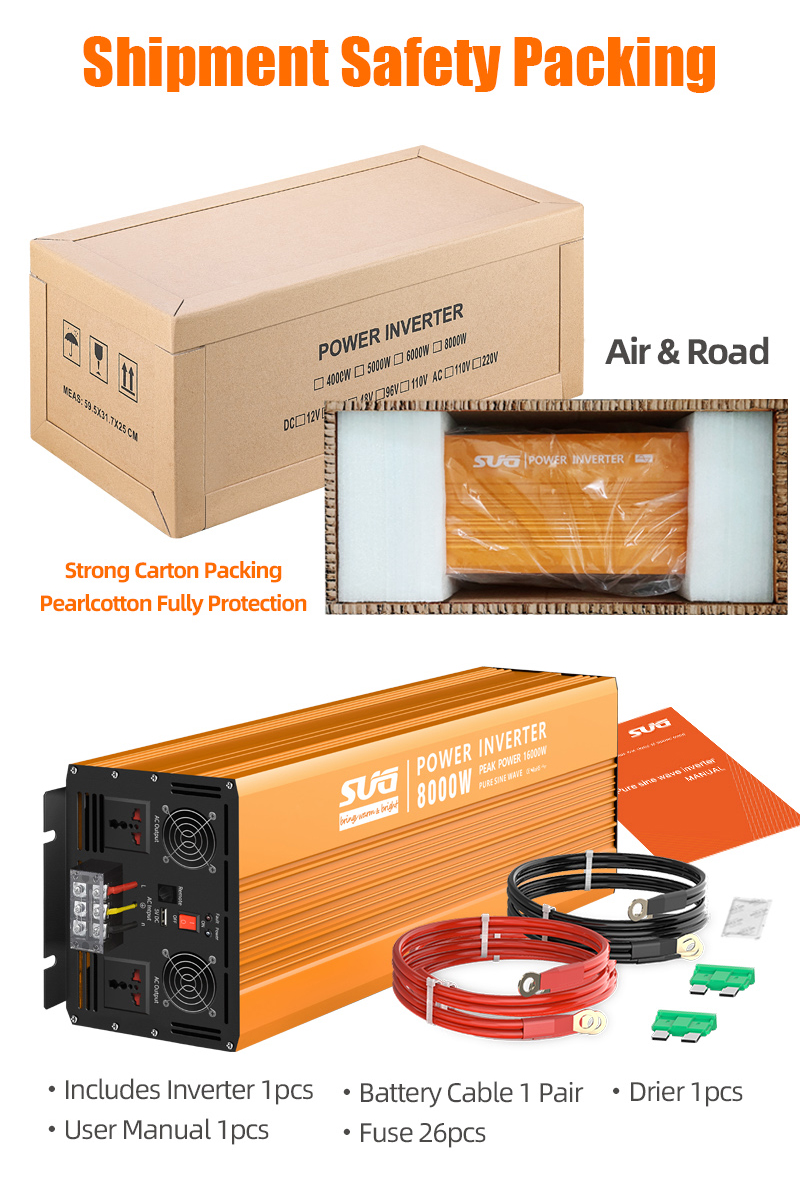

Packing	Carton
Warranty	2 years
