عربي SPW-B 48V/51.2V 100Ah Power Wall Lithium Energy Storage Battery
• Remote control
• Supports lithium battery
• Eight major protection functions
• Pure sine wave output

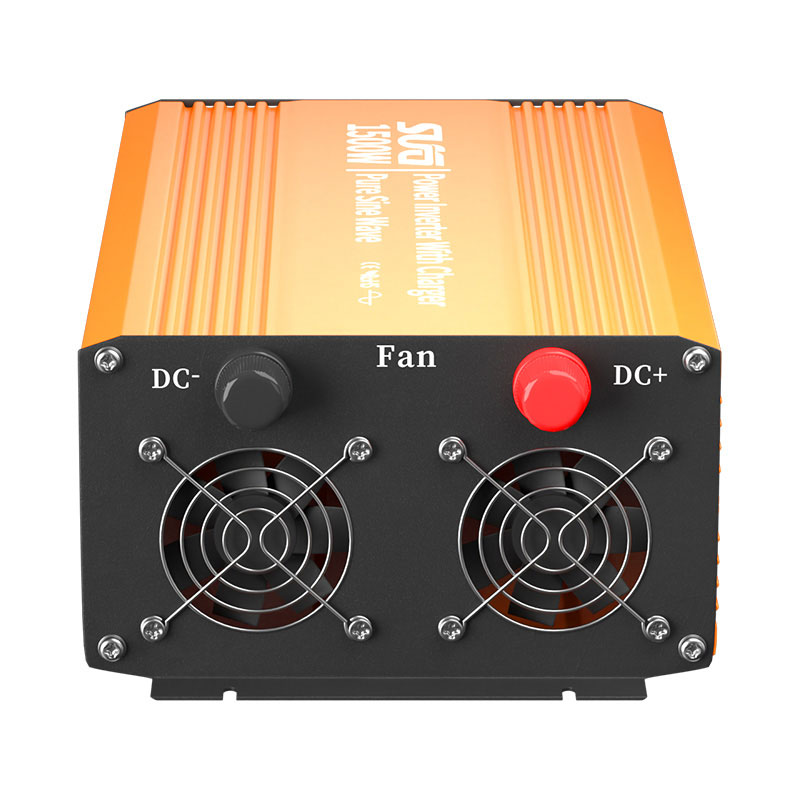

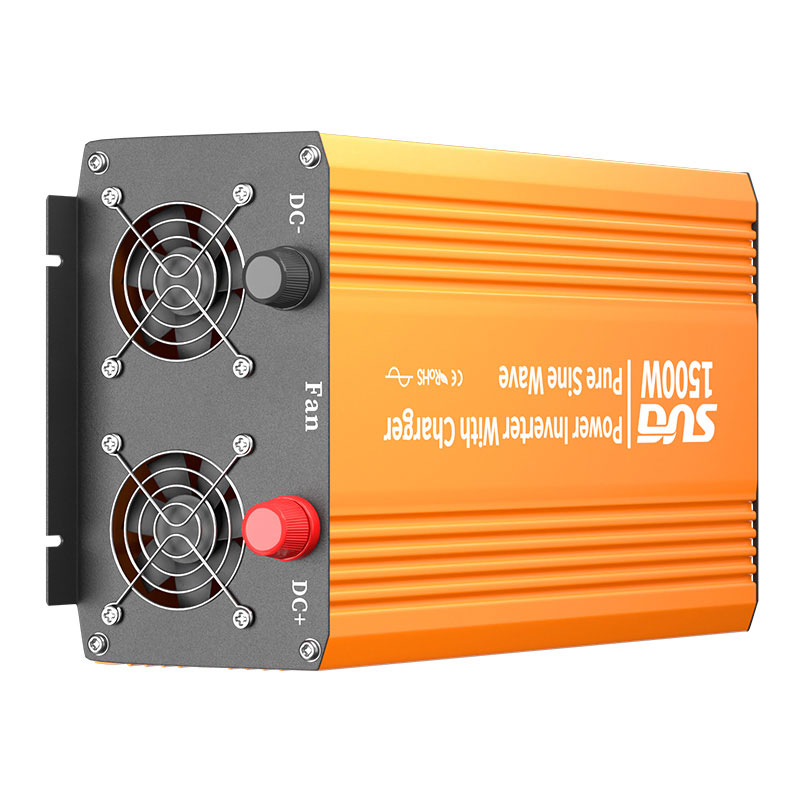

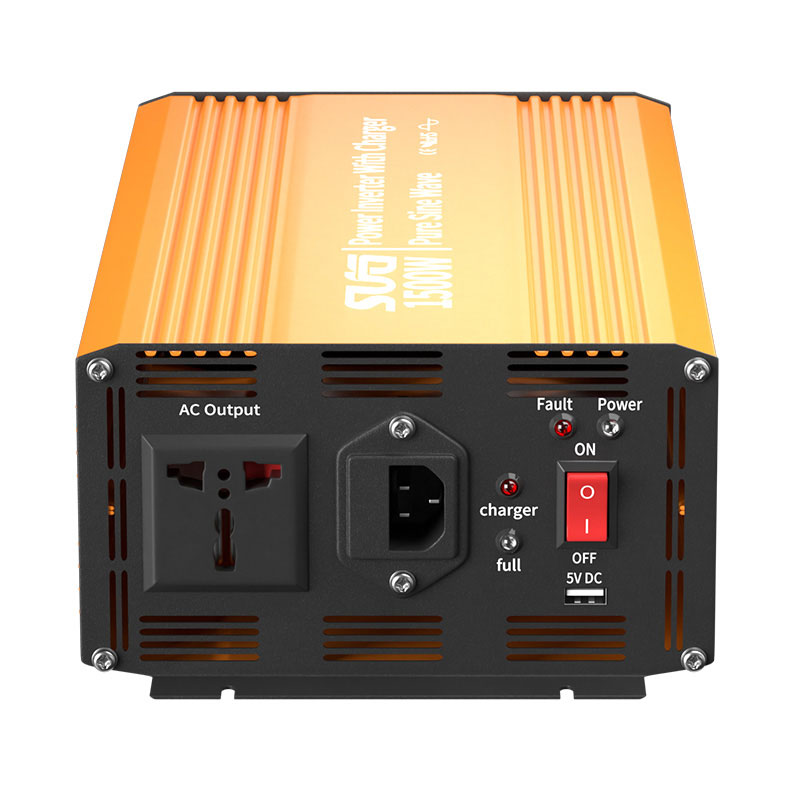

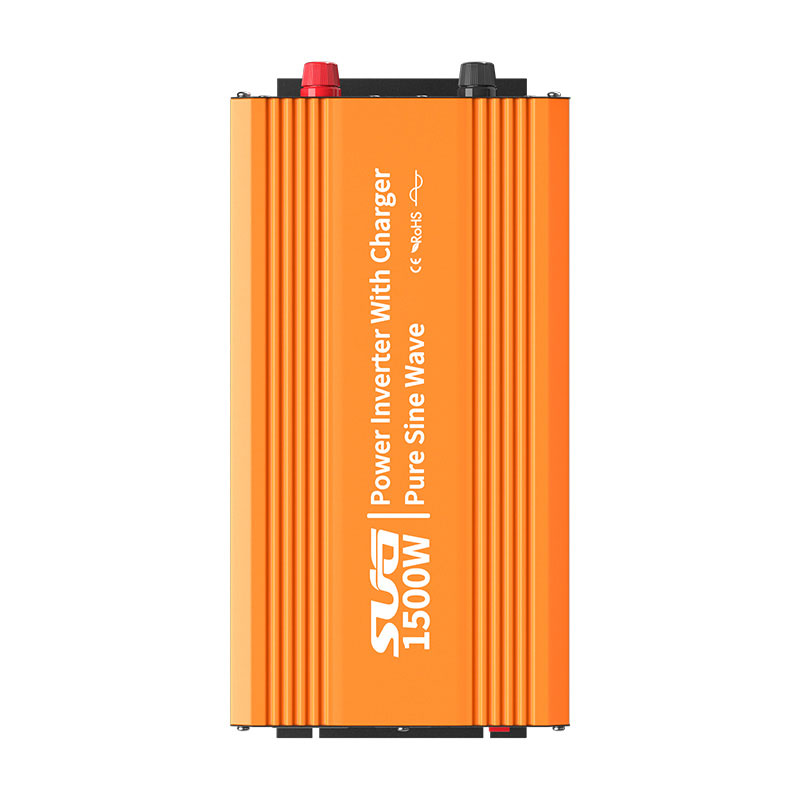

The SGPC Series Pure Sine Wave Inverter with charging has complementary functions of mains charging and mains power, which can prioritize the power supply to the load and charge the battery. When the mains power is cut off, it will automatically switch to inverter power supply, ensuring uninterrupted power supply to the load. The output sine waveform quality is better than that of mains power; At the same time, the design of input and output circuits is completely isolated, ensuring the safety of system operation.
1. Priority of mains power supply to load
2. Equipped with mains charging and UPS functions
3. LCD remote control panel optional
4. Customizable for various types of sockets
5. Pure sine wave inverter
6. Can support lithium battery activation
| Model | SGPC-1500 |
| Rated power | 1500W |
| Peak power | 3000W |
| Input voltage | 12/24/48VDC |
| Output voltage | 110/220VAC±5% |
| USB port | 5V2A |
| Frequency | 50Hz ± 3 or 60Hz ± 3 |
| Output waveform | Pure sine wave |
| Soft start | yes |
| Charging current | 12/20A or 24V/10A |
| Power supply priority | Priority for AC |
| Switching time | ＜10 ms |
| DC input range | 12V(10V-15.5V)；24V(20V-31V)；48V(40V-61V) |
| Input undervoltage alarm | 12V(10.5V±0.5V)；24V(21V±0.5V)；48V(42V±1V) |
| Input undervoltage protection | 12V(10V±0.5V)；24V(20V±0.5V)；48V(40V±1V) |
| Input undervoltage recovery | 12V(12V±0.5V)；24V(24V±0.5V)；48V(48V±1V) |
| Input Overvoltage Protection | 12V(15.5V±0.5V)；24V(31V±0.5V)；48V(60V±1V) |
| Input overvoltage recovery | 12V(15V±0.5V)；24V(20V±0.5V)；48V(59V±1V) |
| Refrigeration method | Intelligent fan |
| Protection function |
Undervoltage protection, overvoltage protection, overload protection, over temperature protection, short circuit protection, reverse connection protection (fuse) |
| Working temperature | -10°C-+50°C |
| Product size (cm) | 37.5*17*10.2 |
| Package size (cm) | 47.5*47*36.5/4PCS |
| NW./PCS (kg) | 3.7 |
| GW./Ctn (kg) | 20 |
| Packaging method | Carton |
| Warranty | 1Year |
