中文SPW-B 48V/51.2V 100Ah Power Wall Lithium Energy Storage Battery
BMS protection
Stacked design
Home energy storage
Intelligent communication

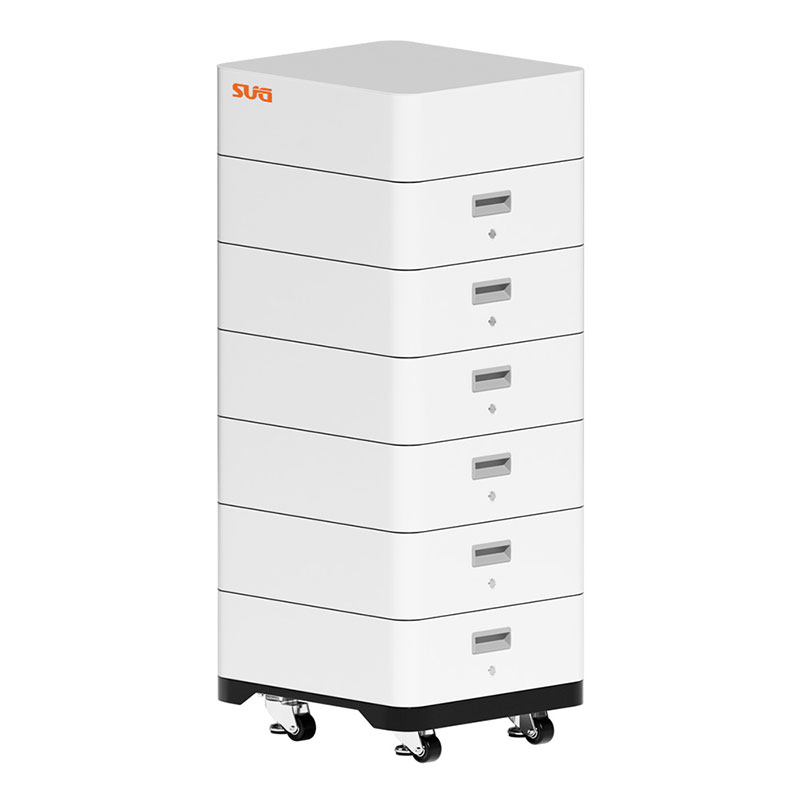

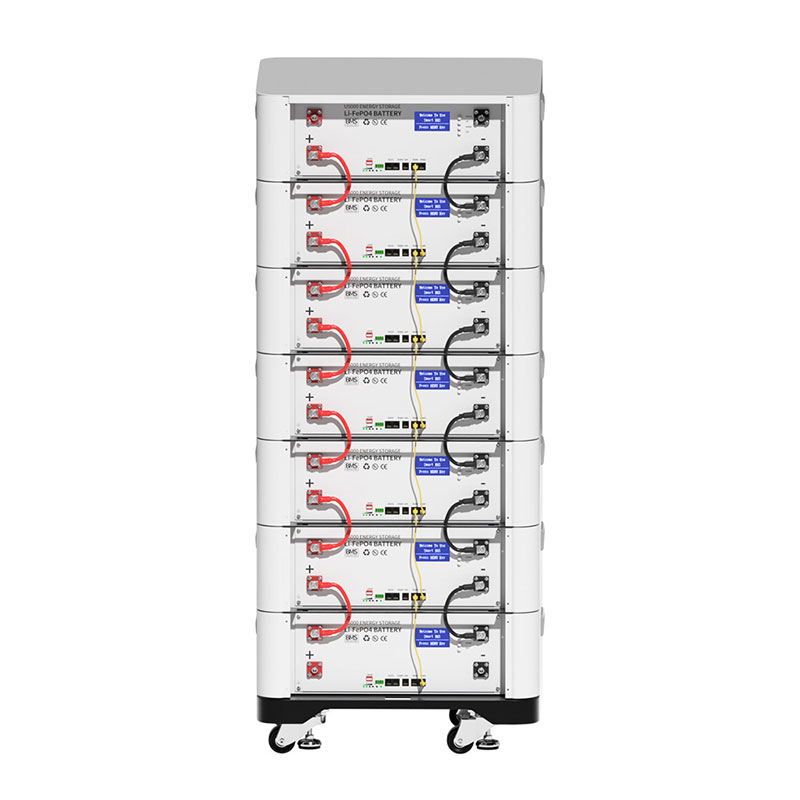

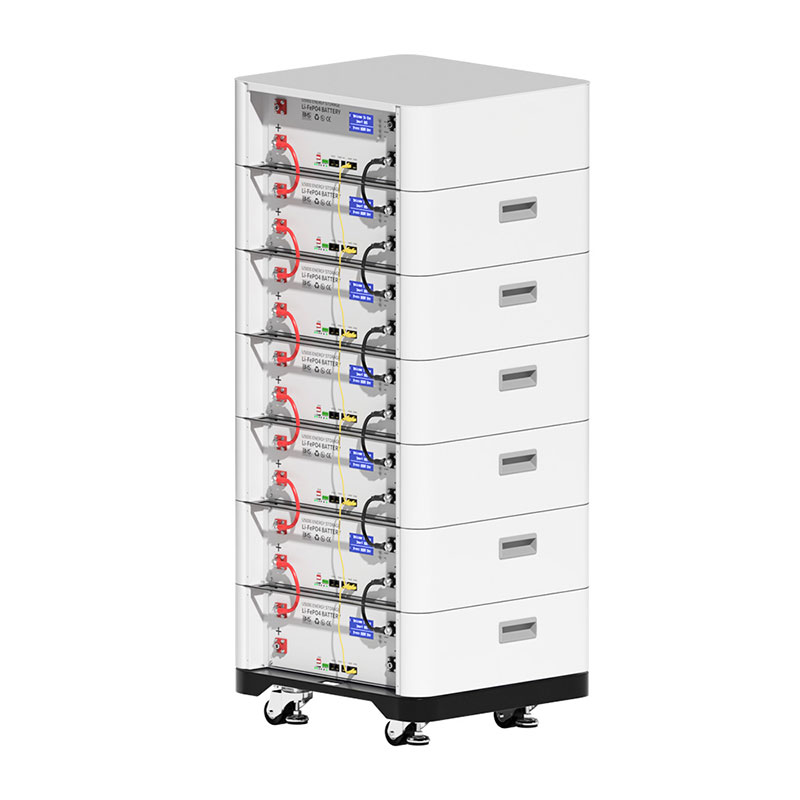

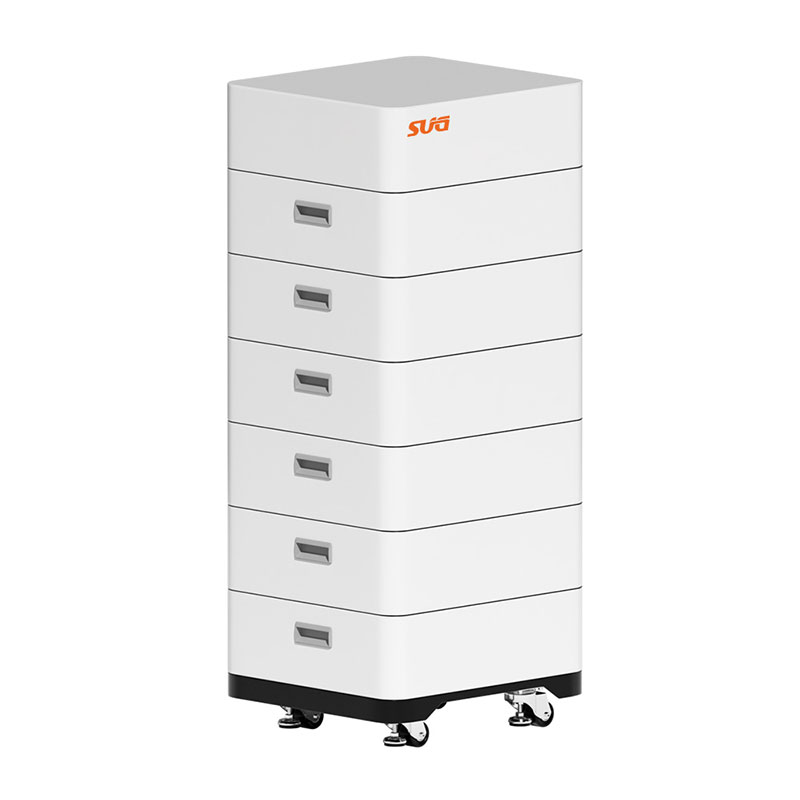

The SBM-H High voltages stacked lithium energy storage battery, uses high cycle lithium iron phosphate cells, a high-performance BMS protection and management battery system, and can stack up to 7 modules per group (including the BMS main control layer). Multiple groups can be freely combined to achieve 2-8 battery modules in series, meeting various needs of households and industries.
1 Grade A LiFePO4 cell
2 Supports up to 8 modules in series
3 High voltage BMS control system
4 6000 cycles @ DOD80%
5 Convenient to move and freely combine
| Model | SBM-H-30.72kWh |
| Standard voltage | 102.4V |
| Number of modules | 1+6/PCS |
| Single module capacity | 50Ah |
| Rated capacity | 5.12kWh*6 |
| Working voltage | 518.4-694.4V |
| Standard charging current | 25A/module |
| Standard discharging current | 50A/module |
| Suggested DOD | 80% |
| Cycle life | >6000 cycles |
| IP Rating | IP21 |
| Discharge operating temperature | -20℃-50℃ |
| Charging operating temperature | 0℃-45℃ |
| Maximum series connection | 8PCS |
| Communication | CAN/RS485(WiFi/Bluetooth optional) |
| Warranty | 5 Years |
| Certificate | UN38.3/MSDS/CE/ROHS/FCC |
| NW. (kg) | 54*6+14.2(base) |
| GW.(kg) | 64*6+18.7(base) |
| Product size (mm) | 50*500*(178*7+105) |
| Package size（mm） | 650*600*290*7 630*580*252(base) |
