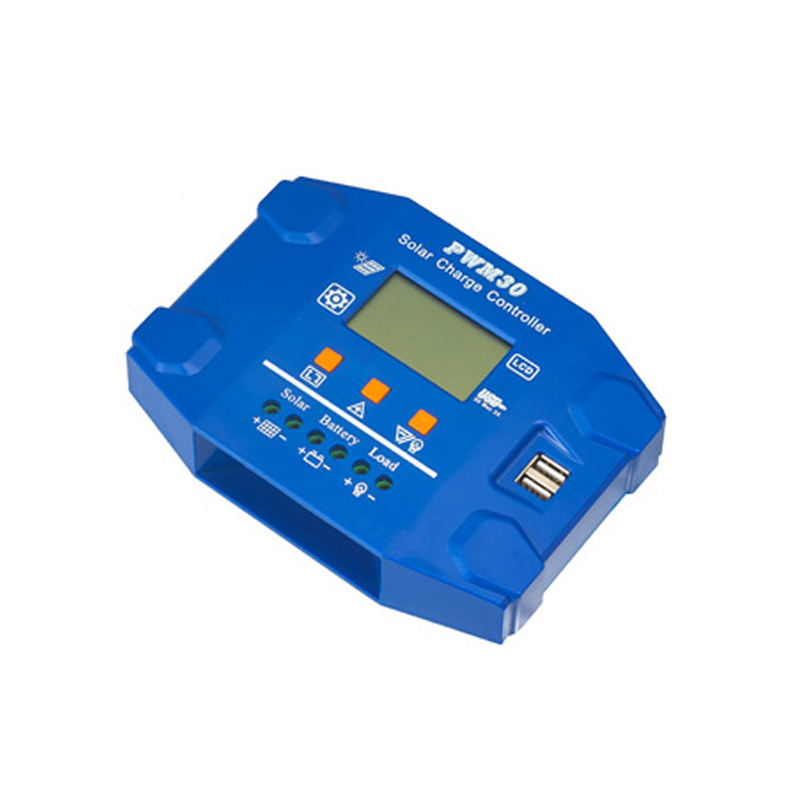

It uses digital output of microprocessor to control analog circuit. Constant current, constant voltage and floating charging are adopted. The PWM solar controller solves the problem that the battery is not fully charged and the life of the battery is short.
It can be used in small-user solar power system for home, street light, water pump, solar water heater, etc, which controls the charging of solar panels by batteries and the batteries supply power to inverters and loads.
| Model | SD-10/20/30/40 | SD-20/30/40-48 | SD-50/60 | SD-50/60 |
| Max Solar Current | 10/20/30/40A | 20/30/40A | 50/60A | 50/60A |
| System Voltge | 12V/24V Automatic Recognition | 48V | 12V/24V Automatic Recognition | 48V |
| Fast Voltage | 14.0/28.0V (25ºC) | 56V (25ºC) | 14.0/28.0V (25ºC) | 56V (25ºC) |
| Boost Voltage | 14.0~15.0V/28.0~30.0V (25ºC) | 56~60V (25ºC) | 14.0~15.0V/28.0~30.0V (25ºC) | 56~60V (25ºC) |
| Equalization Voltage | 14.0~15.5V/28.0~31.0V (25ºC) | 56~62V (25ºC)(Liquid) | 14.0~15.5V/28.0~31.0V (25ºC) | 56~62V (25ºC)(Liquid) |
| Float Voltage | 13.0~14.5V/26.0~29.0V (25ºC) | 52~58V (25ºC) | 13.0~14.5V/26.0~29.0V (25ºC) | 52~58V (25ºC) |
| Over Voltage Protection Voltage | 16.5/33.0V | 66.0V | 16.5/33.0V | 66.0V |
| Load Disconnect Voltage | 11.2-11.8V/22.4-23.6V | 44-50V | 11.2-11.8V/22.4-23.6V | 44-50V |
| Load Reconnect Voltage | 12.5V/24.0V | 47.2-53.2V | 12.5V/24.0V | 47.2-53.2V |
| Battery Type | Lead Acid Battery | |||
| Temperature Compensation | 4.17mV/K Per Cell (Boost, Equalization),3.33mV/K Per Cell (Float) | |||
| Max Solar Voltage | 55V | 100V | 55V | 100V |
| Max Battery Boltage | 40V | 64V | 40V | 64V |
| Max.Wire size | 25mm | |||
| Own Consumption | 13.8mA | |||
| Ambient Temperature | -10~+60ºC | |||
