Product Specifications

Product Introduction

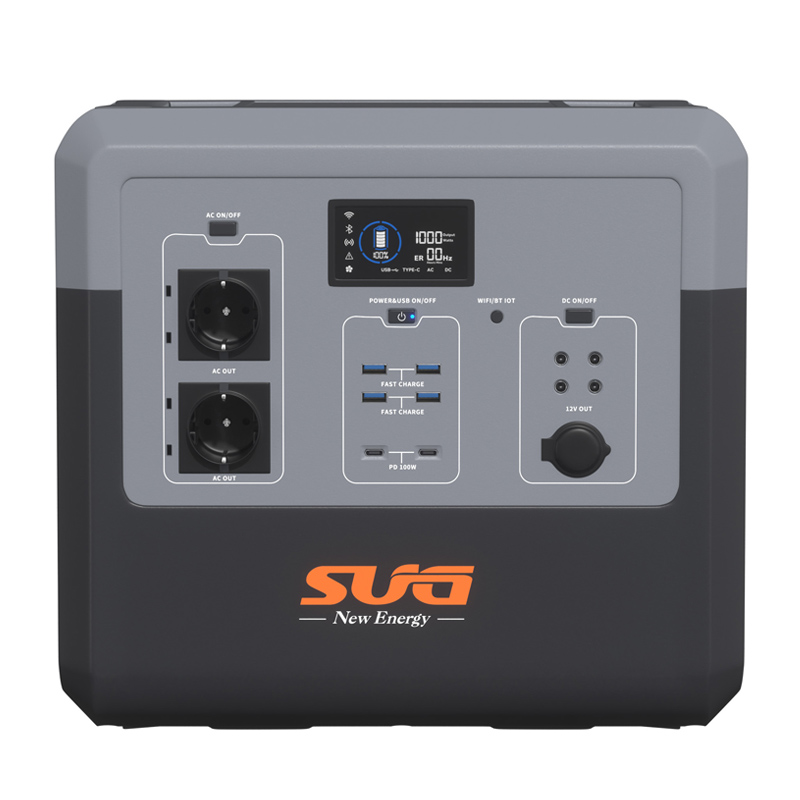

SIPS portable energy storage power station has a built-in inverter, which can output sine wave AC power similar to household electricity, and can provide emergency power for electrical appliances. It has multiple DC voltage outputs (5V/9V/12V/15V/20V) that are compatible with different ports such as USB, TYPE-C, DC5521, cigarette lighter, etc. It is also equipped with LED lighting, which can display the real-time status and output power of the battery through the display screen.

Product Features

1. 110V/220Vac output customizable

2. 23000 cycles of A - grade LiFePO4 cell

3. Pure sine wave output

4. Multi level emergency lighting

5. Solar/mains charging

6. Lithium iron phosphate battery pack

7. USB / TYPE-C / DC5521 / Cigar lighter DC output

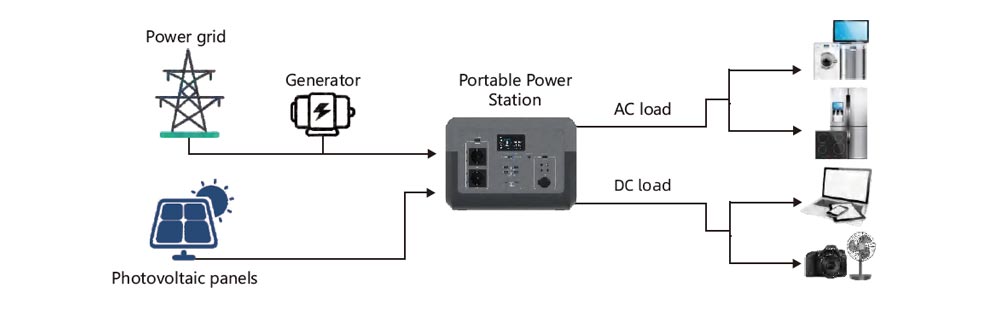

Product Connection Diagram

Product Parameters

Model	SIPS-1500
Rated power	1500W
Peak power	3000W
Rated capacity	1280Wh
Battery pack parameters	25Ah,51.2V
Battery brand and type	Grade A LiFePO4 Battery(3000 Cycles)
Communication output	100V, 110V, 120V, 220V, or 230V ± 5% (voltage adjustable)
Output waveform	Pure Sine Wine
USB output	USB*4PCS QC18W(QC3.0/QC2.0/AFC/FCP/BC1.2/APPLE)
Type-C1 output	PD100W(5V3A/9V3A/12V3A/15V3A/20V5A)
Type-C2 output	PD100W(5V3A/9V3A/12V3A/15V3A/20V5A)
Cigarette lighter/2 * DC5521 output	/
Cigarette lighter/4 * DC5521 output	12V/10A
Solar panel/DC5521 charging	10-60V,13A (Maximum 440W)
AC charging	90-246V (Maximum 1200W)
Charging temperature	0-40℃(32-104℉)
Discharge temperature	-10-45℃(14-113℉)
Product size (cm)	374265263
Package size (cm)	472368365
NW./PCS (kg)	17
GW./Ctn (kg)	19.5
Describe	UPS/Bidirectional inverter/Supports parallel connection/With WIFI and Bluetooth/ Can work at high power/Voltage adjustable/Grade A LiFePO4 Battery
Packaging method	Carton
Warranty	1 year
