عربي SPW-B 48V/51.2V 100Ah Power Wall Lithium Energy Storage Battery
• BMS protection
• High power output
• Industrial and commercial energy storage
• Intelligent communication

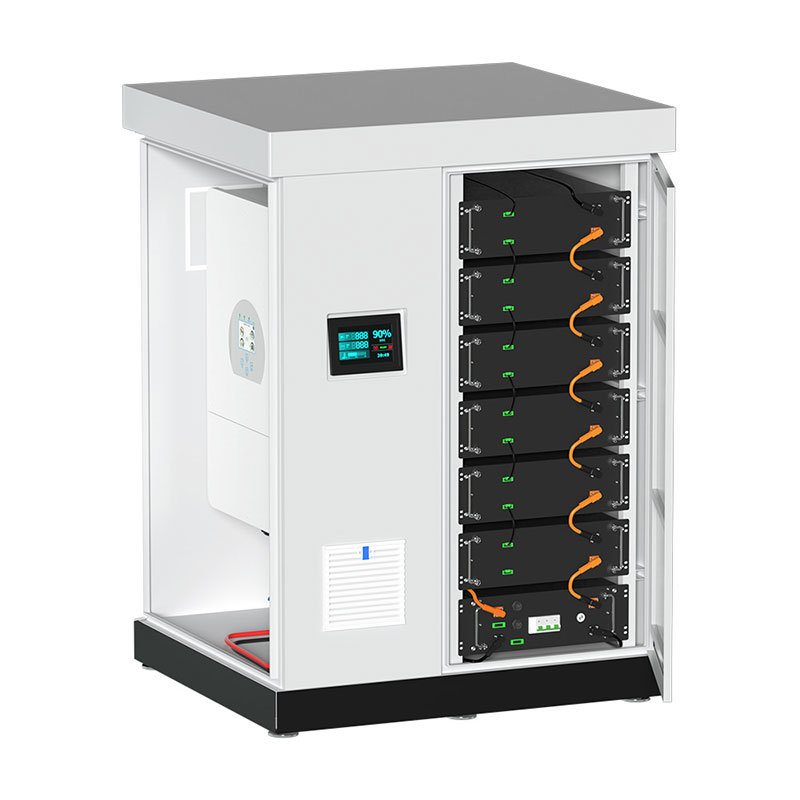

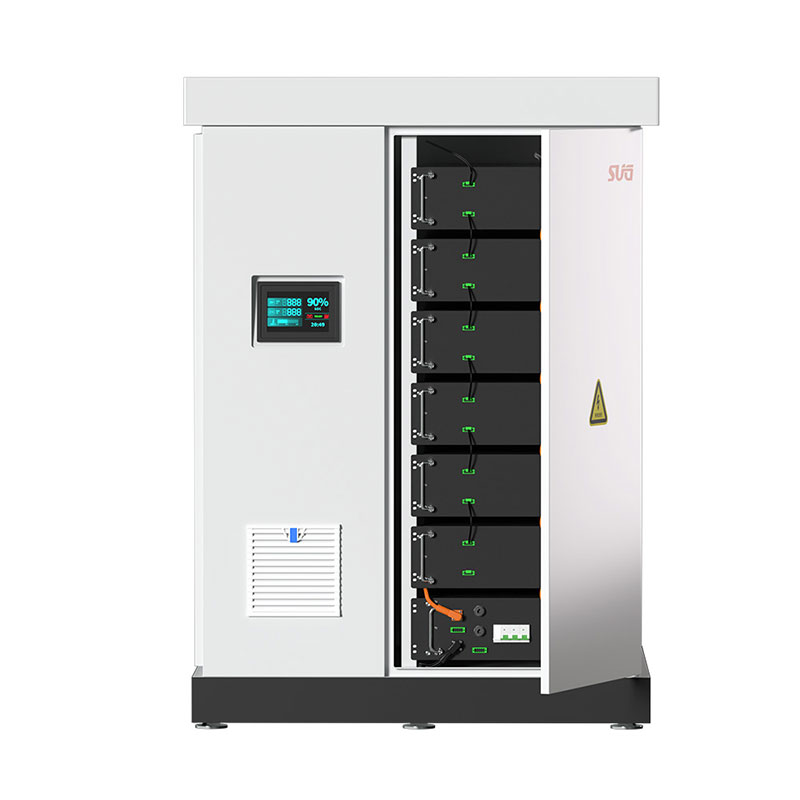

1. This energy storage cabinet is 60-215kWh class system, using fan/air-conditioner/liquid cooled lithium iron phosphate battery pack.

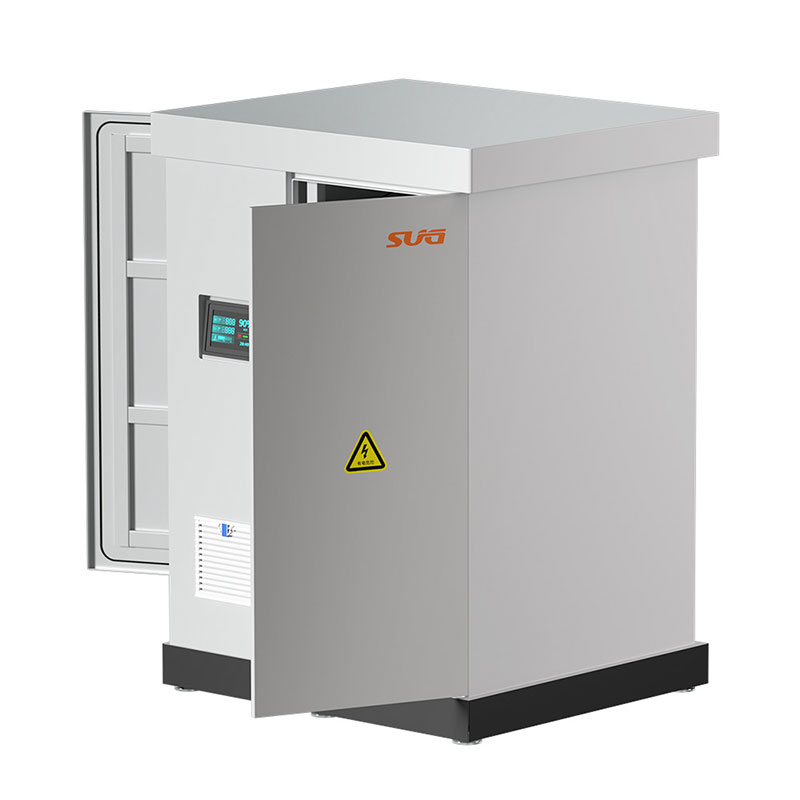

2. Two-layer BMS battery management system, a comprehensive digital LCD display, you can easily view and manage on the spot.
3. Industrial and commercial enterprises, data centers, industrial parks, commercial buildings, large industries, mobile device energy storage, platform expansion, power quality management, etc.
4. This storage cabinet is equipped with a 30/50/100kW hybrid inverter, a multifunctional inverter that combines Inverter, solar charger, grid charger and lithium battery support.

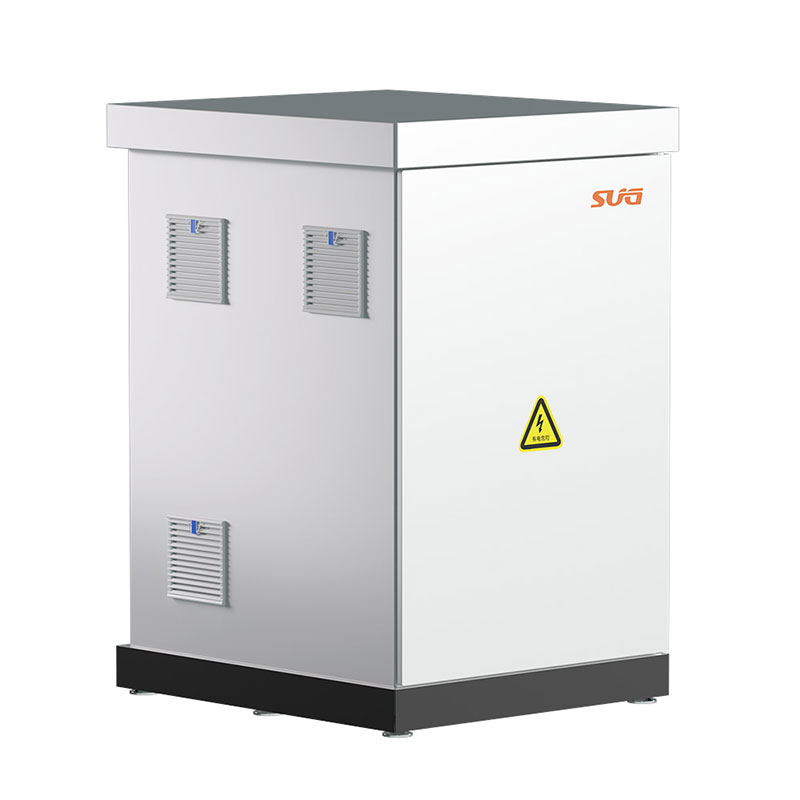

5. The energy storage cabinet is designed in the form of outdoor cabinet, with IP54 protection grade and highly integrated design.
6. The cabinet is integrated with auxiliary components such as air-conditioner, liquid cooling system, lighting, power distribution, fire fighting, and environmental event disposal as optional.
※ Industrial and commercial enterprises, data centers, industrial parks
※ Commercial buildings, large industries, mobile device energy storage
※ Platform expansion, power quality management, etc
| Model | |||
| AC Output Specification | SBP-30000 | SBP-50000 | SBP-100000 |
| Rated AC Input/Output Active Power(W) |
30000W | 50000W | 100000W |
| Peak Power(off grid) | 1.5 time of rated power, 10 S | ||
| AC Output Rated Current(A) | 45.6A | 75.8A | 151.6A |
| Max. AC Current(A) | 60A | 83.3A | 166.6A |
| Output Frequency and Voltage | 50/60Hz:3 L/N/PE 220/380,230/400Vac | ||
| Grid Type | Three Phase | ||
| Total Harmonic Distortion(THD) | ＜3% (of no minal power) | ||
| PV Input Specification | |||
| Max. PV Input Power(W) | 39000W | 65000W | |
| Max. PV Input Voltage (V) | 1000V | ||
| MPPT Range(V) | 150-850V | 300-900V | |
| Start-up Voltage(V) | 180V | 300V | |
| Full Load MPPT Voltage Range(V) | 360-850V | 450-850V | 500-900V |
| Rated PV Input Voltage (V) | 600V | ||
| PV Input Current(A) | 36+36+36 | 36+36+36+36 | 50A+50A+50A+50A |
| Max.PV Isc(A) | 55+55+55 | 55+55+55+55 | 60A+60A+60A+60A |
| No. of MPP Trackers | 3 | 4 | 4 |
| No.of Strings per MPP Tracker | 2 | 1 | |
| Battery Specification | |||
| Spec Of Each Module | LFP 102.4V 100AH 10.24kWh | LFP 51.2V 200AH 10.24kWh | LFP 153.6V 280AH 43kWh |
| Module Number | 6 | 10 | 5 |
| Battery System Capacity | 61.44kWh | 102.4kWh | 215kWh |
| Battery Voltage Range | 537.6V-691.2V | 432V-576V | 600V-876V |
| Basic Parameter | |||
| Overall Dimensions (width *depth * Height) |
1170*1031*1635mm | 1170*1031*1835mm | 1500*1550*2300mm |
| Weight | 900KG | 1500KG | 2430KG |
| Cooling Mode | Fan cooling, Air-conditioner cooling and Liquid cooling optional | ||
| Class Of Protection | IP54 | ||
