Product Specifications

Product Introduction

SDC DC-DC charger, capable of maintaining auxiliary battery system charging throughout the journey. DC-DC battery charger is designed specifically for dual battery systems, ensuring reliable performance. The auxiliary battery system operates at peak efficiency for a longer period of time when disconnected from the power grid.

When the engine is running, the DC-DC charger will safely charges the auxiliary battery pack. Supplements for RVs, ships, or any other off grid vehicles.

Product features

①Multi-chemistry battery types ( flooded, gel, AGM, and lithium)

②3-stage charging (bulk, absorption , and float)

③Smart protection features ( battery lsolation, over-voltage safety, overheat protection, and short circuit protection)

④Overcomes voltage drop caused by long cable runs

⑤Able to charge an auxiliary battery to 100% state of charge

⑥Increases run time of loads, such as fridges and lights

⑦Prolongs battery life

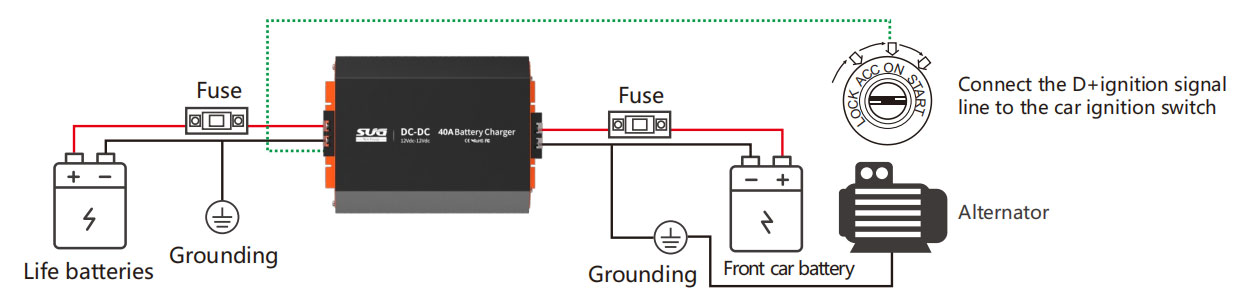

Product Connection Diagram

Parameters

Model	SDC-20A	SDC-30A	SDC-40A	SDC-60A
Nominal input Voltage	12v
Input voltage range	8V~16V
Charging current	20A	30A	40A	60A
Charging voltage	13.2V~14. 7V
Output	250W	360W	500W	750W
Efciency up to	0.9
Idle Power Consumption	<0.4A
Ambient Humidity	≤95%Non-Condensing
Residual rupple of Output voltage at Rated current	＜50 mVeff
Ambient temperature For operation	-20°C~50°C
Net Dimension(L×W×H)	17014683mm	17014683mm	20514683mm	24214683mm
Outer box size (L × W × H)	220210155mm	220210155mm	250*210“155mm	293210155mm
NW. (kg)	1.19	1.19	1.55	1.87
GW.(kg)	1.5	1.5	1.81	2.15
Certifcation	CE FCC ROHS
Protective function Specifcations
Protections	High-voltage,low-voltage,high-temperature,short-circuit
Low voltage cut of	8V
low voltage restart	10V
High-voltage shut down	16V
High voltage restart	15.5V
