What is a solar charge controller?

  A solar charge controller is a device specially designed to control and manage the charging process of solar cells. This controller uses advanced intelligent control technology to ensure safe, stable and efficient charging of solar cells through real-time monitoring of the voltage and current of solar cells, and provides users with stable and reliable power output. It is the core control part of the entire photovoltaic power supply system.

1. Working principle of solar charge controller

The basic working principle of solar charge controller can be divided into three parts: charging control, load control and battery protection.
1. Charging control: When the solar panel generates current under sunlight, the solar controller will regulate this current so that it enters the battery for charging at a suitable voltage and current. Some advanced controllers such as MPPT (maximum power point tracking) solar controllers can use solar energy more efficiently and adjust the output power of PV panels to the maximum, thereby improving charging efficiency.
2. Load control: When the battery supplies power to the load, the solar controller will adjust the power supply current according to the remaining energy of the battery and the needs of the load to ensure the stable operation of the system.
3. Battery protection: In order to prevent the battery from overcharging or over-discharging, the solar controller will monitor the battery voltage. When the voltage is too high or too low, the current will be cut off in time to protect the battery.

2. Main functions of solar charge controller

1. Charging control: Regulate the current generated by the solar panel to charge the battery with appropriate voltage and current.
2. Load control: According to the remaining energy of the battery and the load demand, adjust the supply current to ensure stable operation of the system.
3. Battery protection: Prevent the battery from overcharging or over-discharging and extend the battery life.
4. Anti-reverse charging function: Use components such as Schottky diodes to prevent the battery from charging the solar cell.
5. Lightning protection function: Built-in varistors and other components prevent lightning strikes from damaging the controller.
6. Temperature compensation function: According to the temperature changes of the battery, adjust the voltage thresholds for charging and discharging to ensure that the battery can be properly protected at different temperatures.

3. Application scenarios of solar charge controller

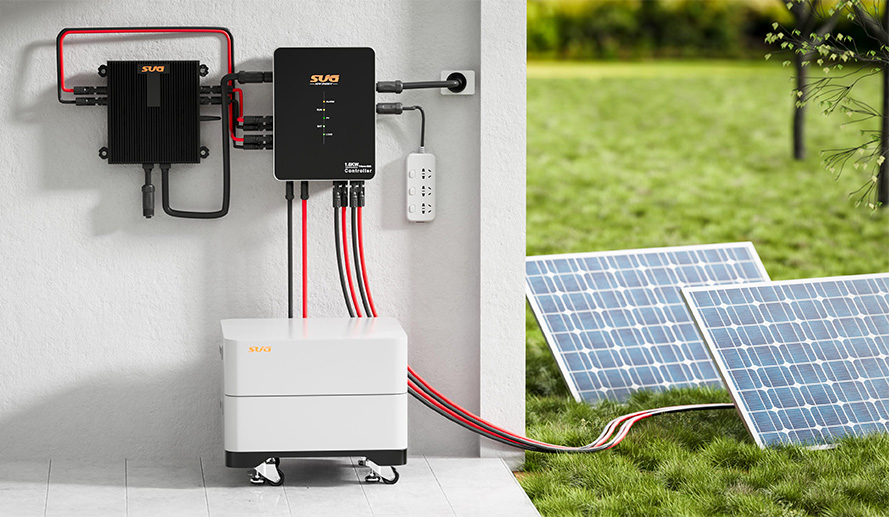

Solar charge controllers are widely used in various solar power generation systems, including home solar power generation systems, commercial solar power generation systems, solar street lights, solar monitoring, etc. In these systems, solar charge controllers play a vital role to ensure the stable operation of the system and the efficient use of solar energy.

4. Purchase suggestions

When purchasing a solar charge controller, you also need to pay attention to the following points:
1. Brand and reputation: Choose well-known brands and products with good reputation to ensure product quality and after-sales service.
2. Functional requirements: Choose a controller with appropriate functions according to actual needs, such as whether MPPT function is required, whether anti-reverse charging and lightning protection functions are required, etc.
3. Technical parameters: Pay attention to the technical parameters of the controller, such as maximum charging current, maximum discharge current, operating voltage range, etc., to ensure that the controller can meet the needs of the system.
4. Price and cost-effectiveness: Under the premise of meeting the needs, choose products with reasonable prices and high cost-effectiveness.

In summary, the solar charge controller is an indispensable and important part of the solar power generation system. It ensures the stable operation of the system and the efficient use of solar energy through fine control and protection mechanisms.
