What is a dc charger​?

In the ever - evolving landscape of electrical and electronic devices, the DC charger has emerged as an essential component. Whether it's powering up our smartphones, electric vehicles, or industrial equipment, understanding what a DC charger is and how it functions is crucial.DC charger is a device that supplies direct current to batteries or DC devices, converting AC power to DC and adjusting the voltage and current according to demand. There are portable, vehicle-mounted, and fixed types, with the characteristics of high efficiency, fast charging, and good compatibility.

Working Principle

• A DC charger converts alternating current (AC) from the power grid into direct current through a rectifier circuit. It then regulates the voltage and current to the appropriate levels for charging the specific type of battery. For example, in a typical lithium - ion battery charger, the charger first steps down the AC voltage from the wall outlet and then rectifies it to DC. It carefully controls the charging voltage and current to ensure the battery is charged safely and efficiently without over - charging or causing damage.

Types

• Portable DC Chargers: These are small - sized chargers designed for charging mobile devices such as smartphones, tablets, and laptops. They are often compact and lightweight, making them convenient for on - the - go use. Many portable chargers have built - in safety features like over - charge protection and short - circuit protection.

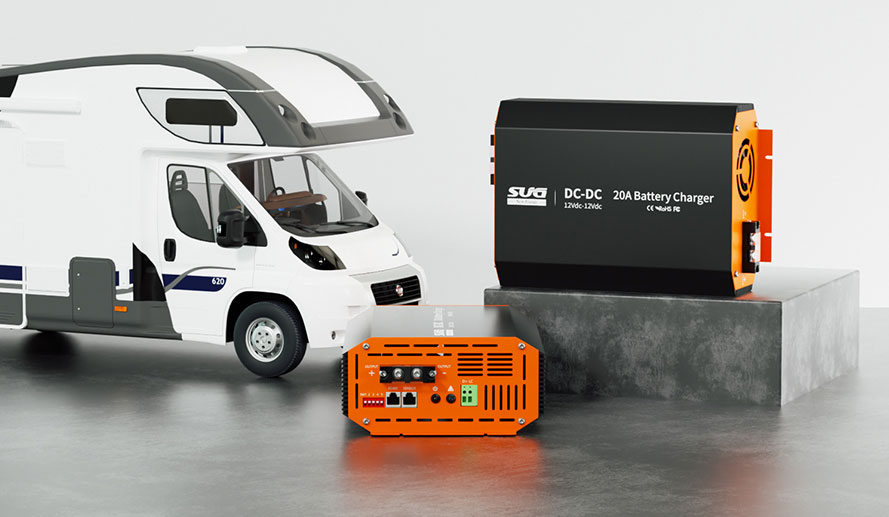

• Vehicle DC Chargers: Used to charge the batteries of electric vehicles (EVs) and hybrid electric vehicles (HEVs). There are different levels of vehicle chargers. Level 1 chargers use a standard household outlet and provide a relatively slow charge, while Level 2 chargers require a dedicated 240 - volt outlet and can charge the vehicle battery much faster. DC fast chargers, also known as Level 3 chargers, can provide a large amount of power in a short time, enabling rapid charging of the vehicle battery.

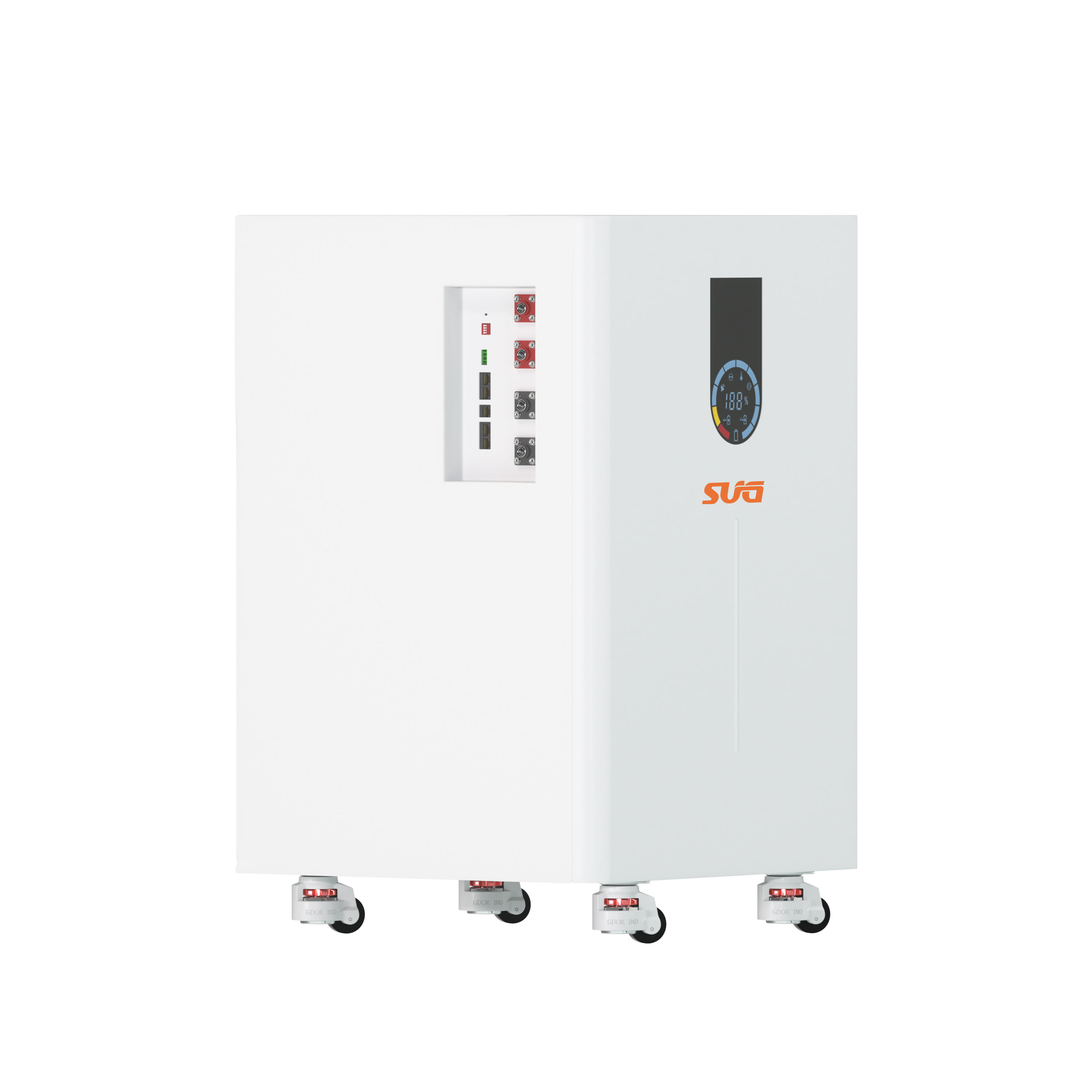

• Stationary DC Chargers: These are often used in industrial settings or for charging large - scale battery systems. They are designed to provide a stable and consistent DC power supply for charging batteries in applications such as backup power systems, telecommunications equipment, and solar - energy - storage systems.

Advantages

• Efficient Charging: DC chargers can directly supply the type of current that batteries need, which reduces energy losses during the charging process compared to some other charging methods. This leads to more efficient charging, especially for batteries that require a specific DC voltage and current profile.
• Faster Charging: Many DC chargers, such as DC fast chargers for electric vehicles, can deliver a high - power DC output, allowing for significantly faster charging times compared to AC chargers. This is particularly beneficial for users who need to quickly recharge their devices or vehicles.
• Compatibility: DC chargers can be designed to be compatible with a wide range of battery types and chemistries, including lithium - ion, lead - acid, and nickel - metal - hydride batteries. This makes them versatile for use in various applications.

Disadvantages

• Cost: DC chargers, especially those with high - power output capabilities, can be more expensive to manufacture and purchase compared to some AC chargers. The advanced circuitry and components required for DC conversion and voltage regulation contribute to the higher cost.
• Complexity: DC chargers typically have more complex circuitry than AC chargers due to the need for rectification and precise voltage and current regulation. This complexity can make them more prone to technical failures, and repairs may be more difficult and costly.
• Limited Portability (for some types): While portable DC chargers for small devices are common, high - power DC chargers, such as those used for electric vehicle charging, are often large and stationary. They are not easily portable and require dedicated installation and infrastructure, which can be a limitation in some situations.

In conclusion, DC chargers play a pivotal role in powering a diverse range of devices. From the convenience of charging our smartphones on the go to enabling the widespread adoption of electric vehicles, their importance cannot be overstated. Despite their drawbacks, continuous technological advancements are likely to address these issues, making DC chargers even more efficient, cost - effective, and accessible in the future.
