Product Specifications

Products Features:

1.4 Independent MPPT trackers, maximize each solar panel output

2.Automatic battery voltage detection in 24V/36V/48V

3.Suitable for different battery types

4.MPPT tracking efficiency >99.9%, peak conversion efficiency >99%

5.With UPS function, keep your home devices running properly

6.6 LED lights clearly show all work status

7.Reverse polarity protection of solar panel and battery

8.Overcharge and overload protection

9.Flexibly monitor your solar harvest via APP

Model	SGC 2.4KW
MPPT Solar Charger
Number of MPPT Trackers	3
PV Operating Voltage	20-60V
MPPT Operating Voltage Range	25-50V
Max. PV Open Circuit Voltage	60Vdc
Max. PV Array Power	3 x 1 Tracker 800W
Max. Charging Current	67A
Max. DC Load Current	3 x 30A
Self Consumption	2W
MPPT Tracking Efficiency	99.9%
Conversion Efficiency	98%
Protection	Overload, Reverse Connection, Short Circuit, High voltage, High Temperature Protection
AC Charger（Optional)
Input Voltage	Not available
Charge Current	Not available
Charge Current Adjustable	Not available
Customized Charge Time	Not available
Battery
Battery Type	Sealed, AGM, Gel, Flooded, Lithium, Lithium carbonate, User-defined
Battery Voltage	Standard 36V
Battery Voltage Range	10V-60V
Customized Discharge Time	Set Up the Discharge Time by APP
Communication
Communication Port	RS485
Energy Management
Input Power from Microinverter	2.4KW
Qty of Microinverter	1pc SMI-2KW;2pcs SMI-1.2KW;
AC Loading (Back-up)	2.4KW 230Vac@2pcs SMI-1.2KW
Loading Peak Power (Back-up)	7.2KW (with 2pcs SMI-1.2KW)
AC Output (On-grid)	2.4KW 230Vac@2pcs SMI-1.2KW
Output Power Factor (Adjustable)	>0.99 Default, 0.8 Leading...0.8 Lagging...
UPS Switch Time	<10mS
Level of Harmonics Distortion	THD <3%
Protection	Overload, Short Circuit, Battery Low Voltage, Battery Reverse Polarity, Lsland Protection
Mechanical
Net Weight	4.5KG
Dimensions	23230190 MM
Cooling	Natural Convection-No Fans

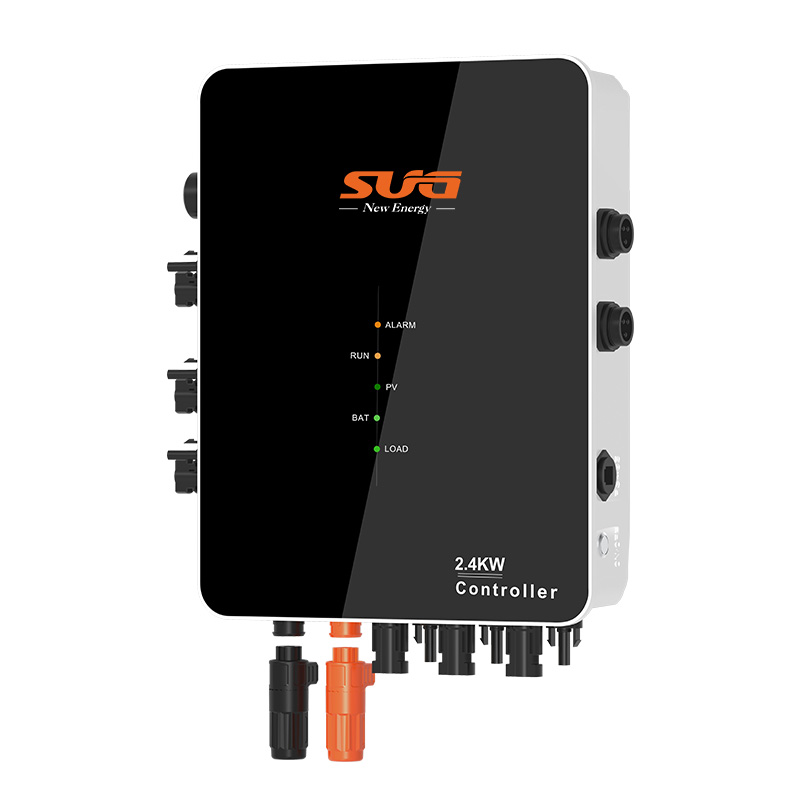

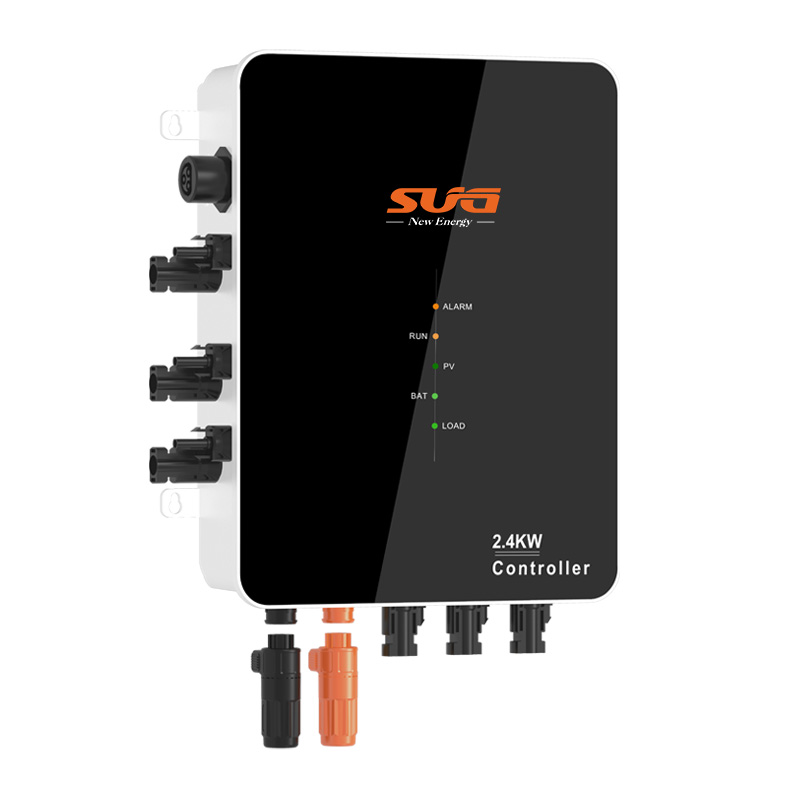

ESS solar controller 2.4KW
